# Adding Azure DevOps Server to Xopero ONE

#### Adding an Azure DevOps Server to Xopero ONE connects your projects and repositories to the platform, enabling seamless backup management and secure data protection.

***

## Using a Personal Access Token (PAT)

{% hint style="warning" %}
**Azure DevOps Server** (self-managed, on-premise) does not support **OAuth** and requires a **personal access token**.
{% endhint %}

{% stepper %}
{% step %}

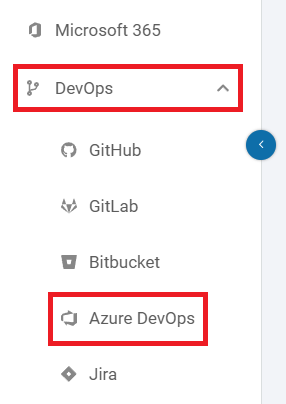

Log in to [**XMS**](#user-content-fn-1)[^1], open the **DevOps** tab on the left side of the window, and select **Azure DevOps** from the list.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2FgPRvv1kzpmkZmBc742Im%2Fimage.png?alt=media&#x26;token=69d4d6c2-4f9a-44d6-9363-8394e39d009c" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Click the **Connect** button under **Azure DevOps Server**.
{% endstep %}

{% step %}

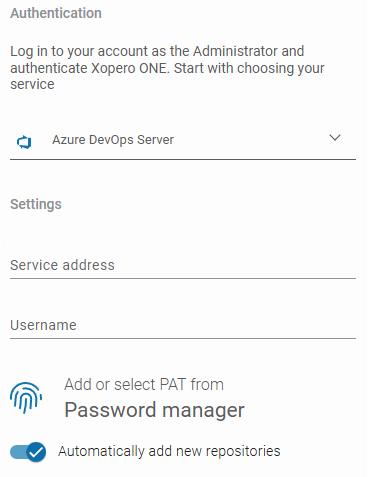

Set your authentication method.

1. In **Authentication**, select **Azure DevOps Server**.
2. Enter the **service address** of your **Azure DevOps Server** (IP or DNS name, including the protocol).
3. Add or select **PAT** from the **Password Manager**.
4. Choose whether **Xopero** should automatically add new repositories to your backup.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2FgoE5YboEIUMSj2KQCVdr%2Fimage.png?alt=media&#x26;token=9e31fe4f-166b-4d5c-9d5a-f75751eaac72" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Configure your repository sync and default worker. Specify hours for synchronization, or set a time interval for automatic updates.

{% hint style="warning" %}
Cloud workers cannot access local network storage. Choose a device with the necessary access if backing up locally.
{% endhint %}

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2Fxao0KkYPmITcz661POOw%2Fimage.png?alt=media&#x26;token=eb8b7bc6-b555-4db7-b22b-4c036a87d414" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Click **Proceed** to complete adding your **Azure DevOps Server** organization and grant **Xopero ONE** access to the specified resources.
{% endstep %}

{% step %}

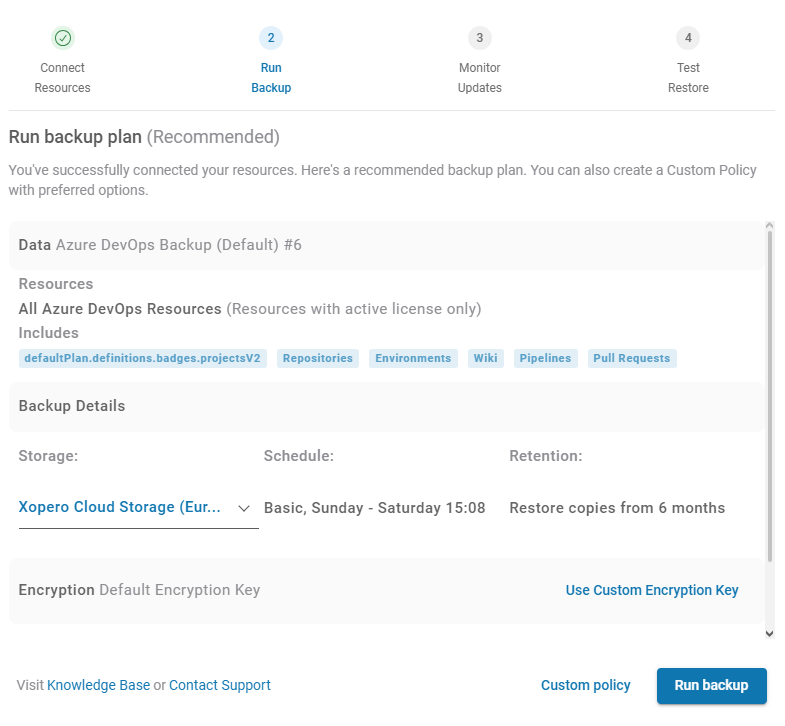

Your **Azure DevOps Server** organization has now been successfully added to **Xopero ONE**. Click **Custom policy** to adjust your backup policy settings, or click **Run backup** to execute the backup immediately using the current policy configuration.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2F73dlTZOiAzaKEwQHzJ1Z%2Fimage.png?alt=media&#x26;token=ff121f61-7c38-4d7d-b7bd-25749238bb97" alt=""><figcaption></figcaption></figure>
{% endstep %}
{% endstepper %}

[^1]: Xopero ONE Management Service
