> For the complete documentation index, see [llms.txt](https://helpcenter.xopero.com/xopero-one-en/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://helpcenter.xopero.com/xopero-one-en/deployment-and-configuration/xopero-one-agent/installation-within-a-docker-container.md). # Installation within a Docker container {% tabs %} {% tab title="Docker" %} ## Deployment 1. To install the **Xopero ONE** agent within a **Docker** container, use the images available on **Docker Hub**: ```docker docker pull xopero/gitprotect-agent:latest ``` 2. Create a host directory for the **Xopero ONE Management Service** container databases (which are located at `/app/Xopero` inside the container) to store databases outside the container: ```docker mkdir -p /opt/gitprotect-agent/data ``` 3. Run the container with the correct volume mounting and environment variables using the following command: ```docker docker run -v /host/path:/container/path -e ENV_VAR=value image_name ``` ```docker docker run -d \ --name \ -e ManagementServiceUrl="" \ -e XoperoOverriddenHostName="" \ -v /opt/gitprotect-agent/data:/app/Xopero \ --restart unless-stopped \ xopero/gitprotect-agent:latest ``` {% code title="Example" overflow="wrap" %} ```docker docker run -d \ --name xopero-agent \ -e ManagementServiceUrl="https://192.168.1.10:28555" \ -e XoperoOverriddenHostName="Docker_agent" \ -v /opt/gitprotect-agent/data:/app/Xopero \ --restart unless-stopped \ xopero/gitprotect-agent:latest ``` {% endcode %} 4. Check if the container works correctly by using the following command: ```docker docker ps ``` 5. Once all the above steps are completed, the agent will report to the **Management Service** panel for activation. {% endtab %} {% tab title="QNAP NAS (CS > 3.0)" %}

Prerequisites Environment setup Deployment

## Prerequisites **QNAP** with: * x86 or x64 CPU (**ARM is not supported**) * minimum 2GB RAM * **Container Station** app from **AppCenter** *** ## Environment setup 1. Download the **Container Station** app from the **App Center**. 2. Login to your **QNAP** web panel and open the **AppCenter** application. In **QNAP Store**, select **All Apps** and search for the **Container Station**.

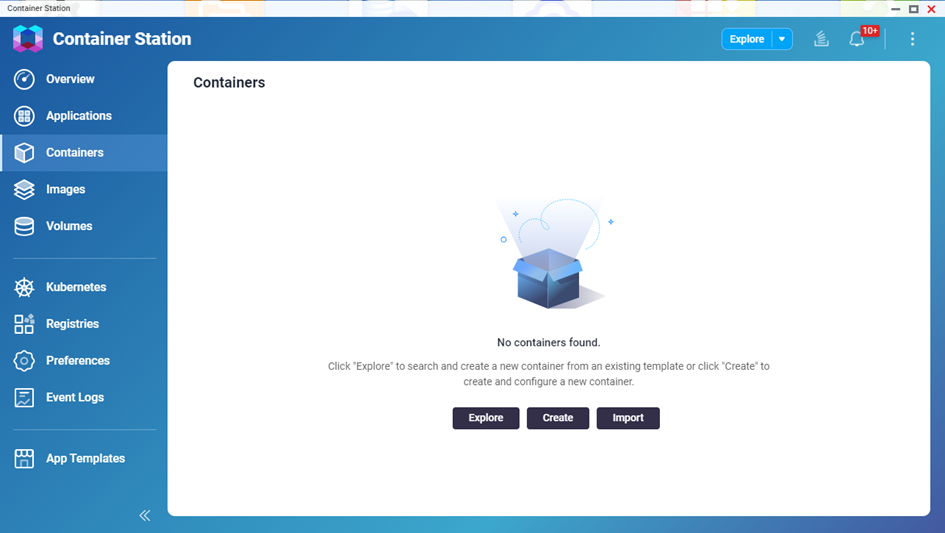

3. Download and open the application. Select the path that will be used as a directory for your **Docker** container data, and click **Start Now** to proceed. *** ## Deployment 1. Open the **Container Station** application, select the **Containers** tab, and click the **Create** button.
2. In **Image Configuration** choose the **Advanced mode** option. In the image type, select **Docker image**, and in the **Image** field, paste the following command: ```docker xopero/gitprotect-agent:latest ``` 3. Ensure the **Try pulling image from the registry before creating the container** option is checked, and hit **Next**.

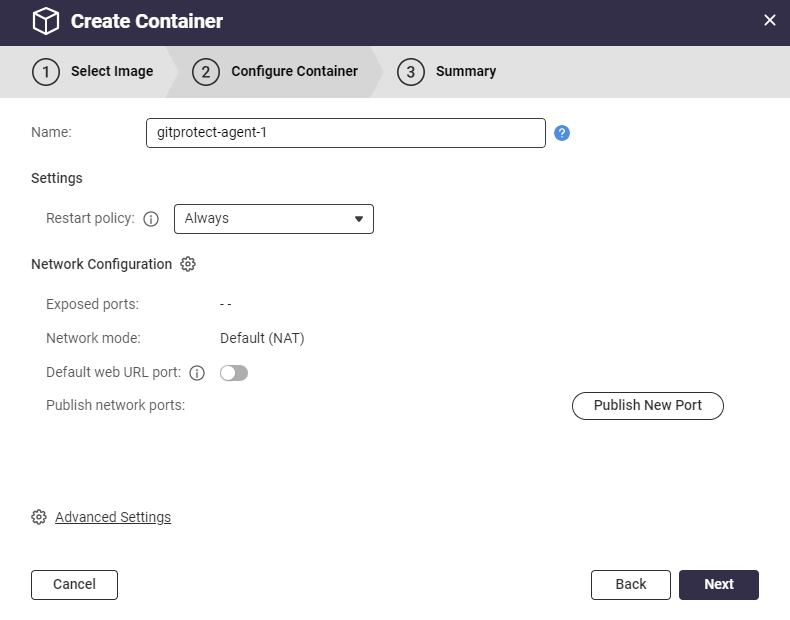

4. Within the **Configure Container** tab, the form contains several fields, with the most crucial being: > **Name** — here you can set a custom name for the container > > **Restart policy** — defines if the container will star automatically in case of, for example, **QNAP** restart
5. In the **Configure Container** tab, navigate to ⚙️**Advanced Settings**. 6. Go to the **Environments** section and click **Add New Variable** to add new environment variables with the following values: {% code title="ASPNETCORE\_URLS" overflow="wrap" %} ```docker http://+:80 ``` {% endcode %} {% code title="DOTNET\_RUNNING\_IN\_CONTAINER" overflow="wrap" %} ```docker true ``` {% endcode %} {% code title="ManagementServiceUrl" overflow="wrap" %} ```docker Xopero ONE Management Service address ``` {% endcode %} {% hint style="warning" %} Replace `Xopero ONE Management Service address` with your **Xopero ONE Management Service** address**\***. {% endhint %} **‼️\*ManagementServiceUrl** – your **Xopero ONE Management Service** (**XMS**) address in one of the following formats (depending on the **XMS** deployment model): 1. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555` 2. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com` {% code title="XoperoOverriddenHostName" %} ```docker your custom QNAP container name ``` {% endcode %}

Example of correctly filled environments variables.

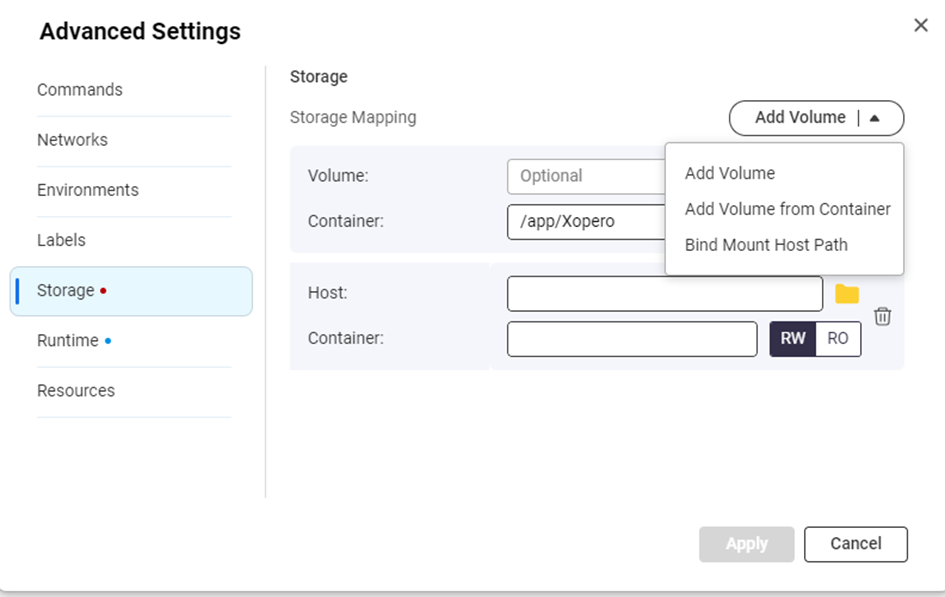

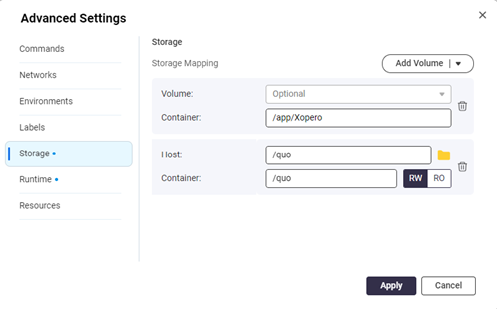

7. Click **Apply** to save your changes. 8. Navigate to **Storage** tab—here you can mount your **QNAP** volumes to the **Xopero ONE** agent docker container. {% hint style="success" %} You can mount multiple directories to the container using **Add Volume** button and repeating the operation. {% endhint %} {% hint style="info" %} To back up data from your **QNAP** device, choose **Bind Mount Host Path** under **Add Volume** drop-down menu — it lets you specify which data the **Xopero ONE** container can access. Select a directory from the host and enter the path visible inside the container in the **Container** field. {% endhint %}

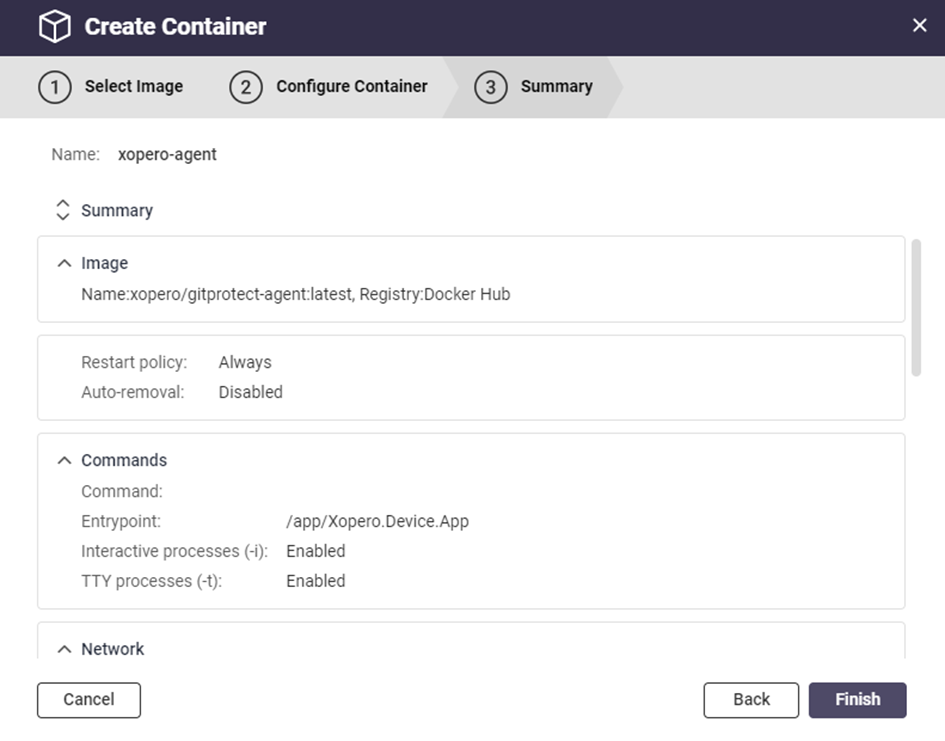

9. Next, double-check and confirm your settings, then click **Finish** to create the container.

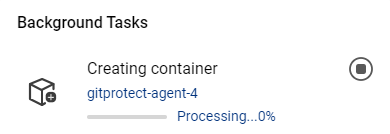

10. **Container Station** will download the latest **Xopero ONE** image and create the container based on that image.

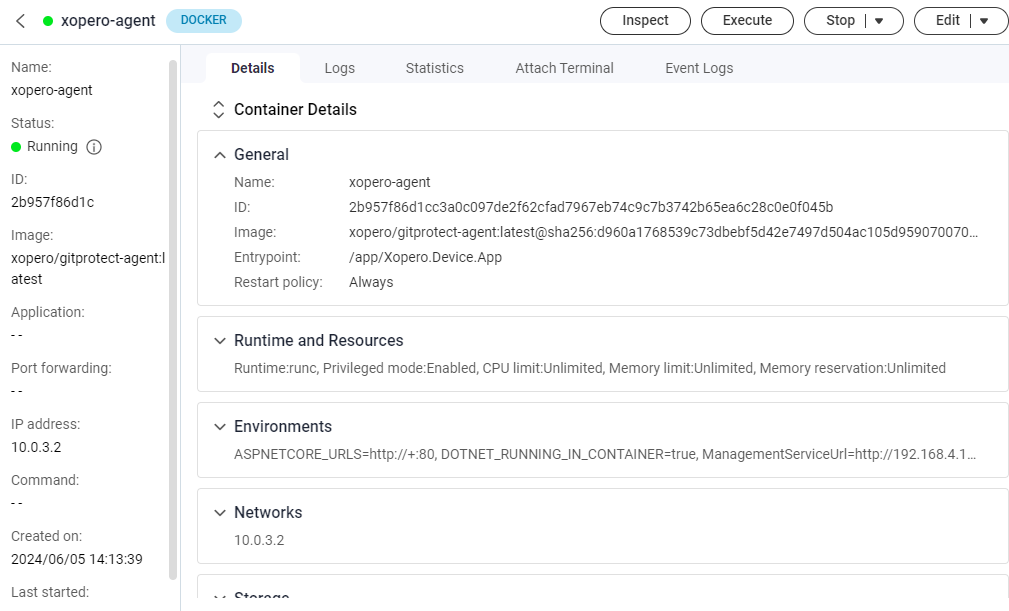

11. Once the container creation process is completed, your new container will be visible under **Container** tab in **Container Station**.
12. You can now connect to your **Xopero ONE Management Service** admin panel to activate the agent. {% endtab %} {% tab title="QNAP NAS (CS < 3.0)" %}

Prerequisites Environment setup Deployment

## Prerequisites **QNAP** with: * x86 or x64 CPU (**ARM is not supported**) * minimum 2GB RAM * **Container Station** app from **AppCenter** *** ## Environment setup 1. Download the **Container Station** app from the **AppCenter**. 2. Login to your **QNAP** web panel and open the **AppCenter** application. In **QNAP Store**, select **All Apps** and search for the **Container Station**.
3. Download and open the application. Select the path that will be used as a directory for your **Docker** container data, and click **Start Now** to proceed. 4. Once done, download the **Xopero ONE** agent **Docker** image, which is available [on our official server](https://xopero.com/download/xopero_one/latest/client-image.tar). *** ## Deployment 1. Open the **Container Station** application and navigate the **Import** tab. 2. Click the ➕**Import** button to upload the previously downloaded **Docker** image file.
Importing the docker file

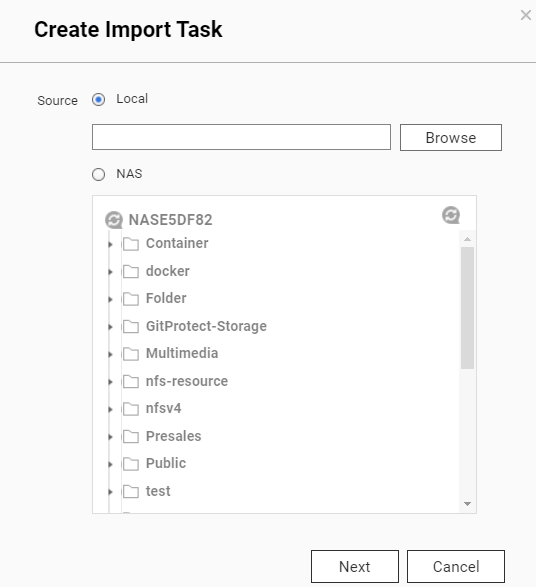

3. In **Create Import Task** window, select the source type and file path of the **Xopero ONE** agent **Docker** image and hit **Next** to continue. {% hint style="info" %} Selecting a file from a local source enables you to choose files stored on your device. Alternatively, you can use the **NAS** option to access files directly from **QNAP**. {% endhint %}
Creating import task

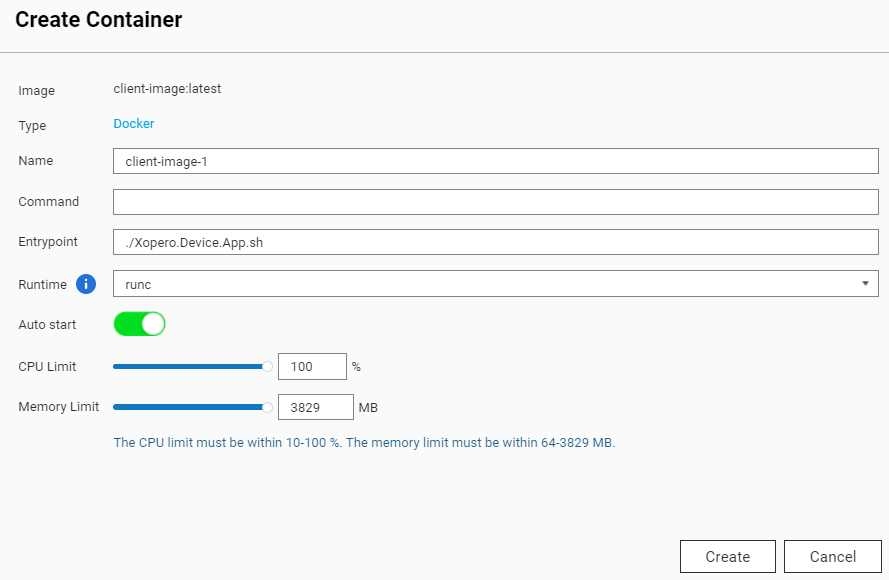

4. Within the **Create Container** tab, the form contains several fields, with the most crucial being: > **Name** — here you can set a custom name for the container > > **Auto start** — defines if the container will star automatically in case of, for example, **QNAP** restart > > **CPU Limit** — allows you to specify the percentage of CPU usage allocated for the container > > **Memory Limit** — RAM limit for the container
Creating container
5. Click the ⚙️**Advanced Settings >>** button and navigate to the **Environment** section.

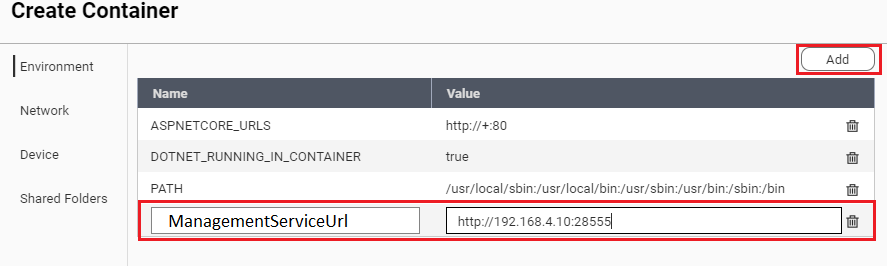

6. To add a new environment variable, click the **Add** button, name it **ManagementServiceUrl**, and set its value to your **Xopero ONE Management Service** address**\***. **‼️\*ManagementServiceUrl** – your **Xopero ONE Management Service** (**XMS**) address in one of the following formats (depending on the **XMS** deployment model): > a. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555` > > b. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com`
create container

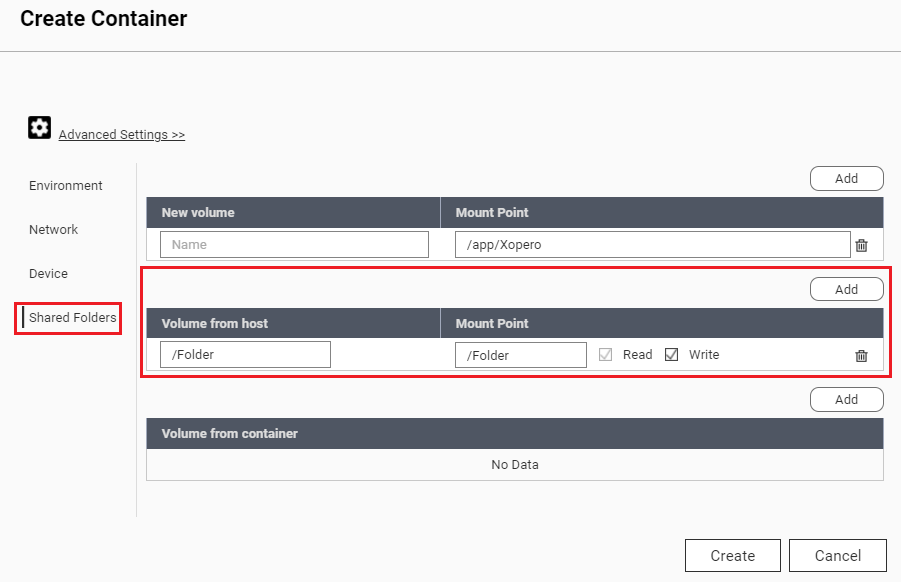

7. Go to the **Shared Folders** section — here you can mount your **QNAP** volumes to the **Xopero ONE** agent **Docker** container. {% hint style="success" %} You can mount multiple directories to the container using **Add** button in **Volume from host** section and repeating the operation. {% endhint %}
Setting shared folders
8. To back up data from your **QNAP** device, choose **Add** under **Volume from host** section— it lets you specify which data the **Xopero ONE** container can access. Select a directory from the host in **Volume from host** field and enter the path visible inside the container in the **Mount Point** field. {% hint style="info" %} For instance, if you need to back up a directory named **Backup** inside a public shared folder, set the **Volume from the host** field to `/Public/Backup`. The **Mount Point** can be different, i.e., `/Backup`. {% endhint %} 9. Once you're done with the above steps, click **Create** to continue. 10. In the **Summary** window double-check your settings, then click **OK** to finish the configuration.
Summary window
10. You can now connect to your **Xopero ONE Management Service** admin panel to activate the agent. {% endtab %} {% tab title="Synology NAS" %} ## Deployment {% hint style="warning" %} To deploy the **Xopero ONE** agent on a **Synology** device using **Docker**, use the **Container Manager** application. If it's not installed, download it from the **Package Center**. {% endhint %} 1. Navigate to the **Container** tab and click the **Create** button. Expand the **Image** section and click **Add image**, then search for `xopero/gitprotect-agent` image.
2. Select the image, click **Download**, and choose the version tagged as **latest**. Click **Select** to confirm. 3. Once the image is downloaded, select it from the **Image** field drop-down menu. 4. Next, define a custom name for the container. Additionally, configure container resource limits if needed. 5. Check the **Enable auto-restart** option to ensure the container automatically restarts when the device reboots, then click **Next** to proceed.
6. In the **Volume Settings** section, click the ➕**Add Folder** button, and select directories that require protection. The container needs to have external directories mounted to access them while performing backups. {% hint style="info" %} To protect data stored in the **Public** directory, select this folder and specify **the same path** to ensure consistency between the host and the container's file systems. {% endhint %} {% hint style="success" %} You can mount multiple directories to the container by clicking ➕ **Add Folder** and repeating the operation. {% endhint %} 7. Additionally, to ensure data persistence during container updates or maintenance operations, mount agent databases to an external directory. These databases are located in `/app/Xopero` and should be mapped to a designated location outside the container to avoid data loss or inconsistency.
8. Next, in the **Environment** section, define the required variables: > **ManagementServiceUrl** — your **Xopero ONE Management Service** (**XMS**) address in one of the following formats (depending on the **XMS** deployment model): > > a. `http://ipaddress:port`, i.e., `http://192.168.0.1:28555` > > b. `https://XMSID.ads.xopero.com`, i.e., `https://a00b0dc0-0116-0000-0000-d0000028960e.ads.xopero.com` > > **XoperoOverriddenHostName** — specify agent's name to facilitate identification
9. Click **Next** to confirm the configuration. In **Summary** window, double-check your settings and if they're all correct, hit **Done** to finalize the process.
{% endtab %} {% endtabs %}
