Installation within a Docker container

This article describes the process of Xopero ONE Management Service (XMS) installation within Docker container for on-premise deployment model.

Deployment

Open cmd console and pull XMS Docker image using the following command:

docker pull xopero/xopero-one-service:latest

Once the Docker image is imported, use the following command to create a container:

docker run -d \
  --name <container_name> \
  -p <xms_port>:80 \
  -v <database_location_outside_container>:/app/Xopero \
  xopero/xopero-one-service

In the above command, replace drive_location_database with the location to mount the database on (from the container to the local directory)— this is important for upgrading the container later. In place of container_name, enter the name of your container and in place of service_port, enter the service port which will be used by Xopero ONE (by default, XMS port is set to 28555).

Example:

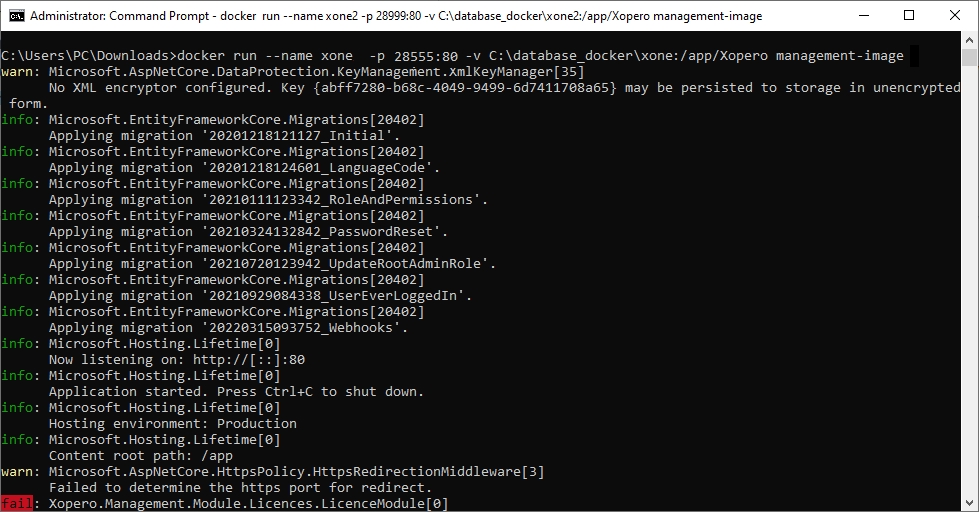

docker run -d \
  --name xone \
  -p 28555:80 \
  -v C:\database_docker\xone:/app/Xopero \
  xopero/xopero-one-service

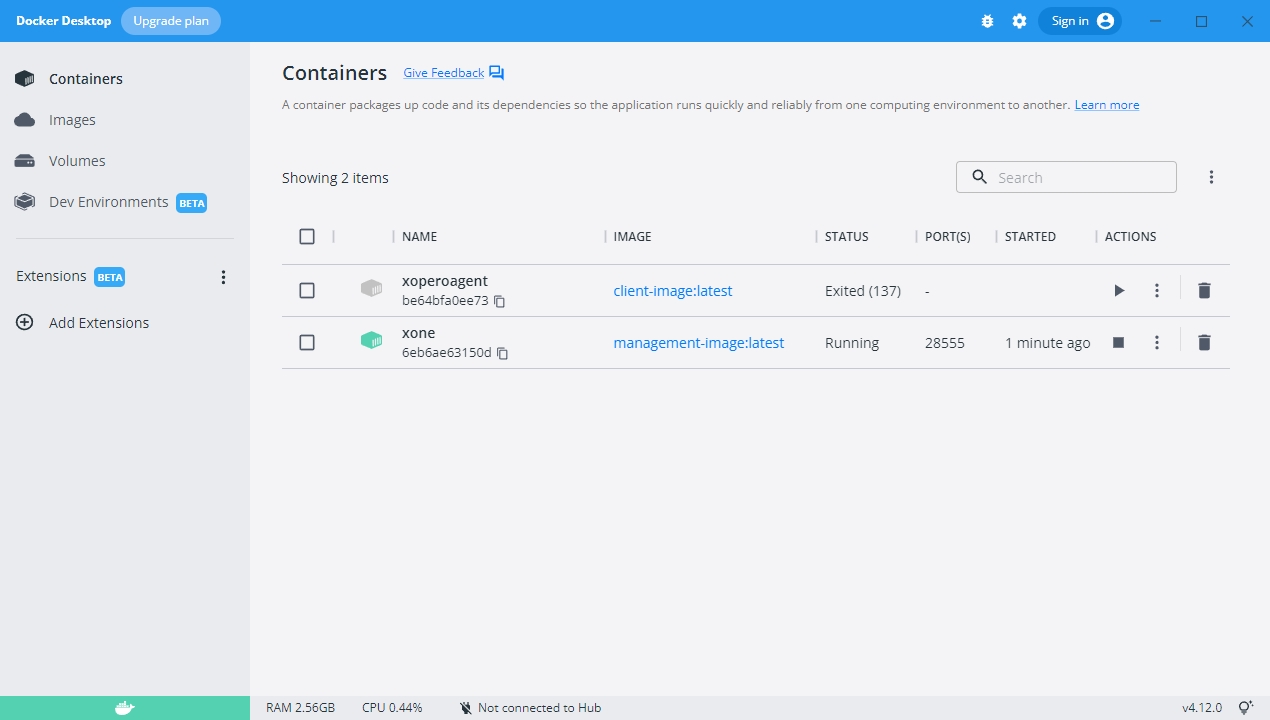

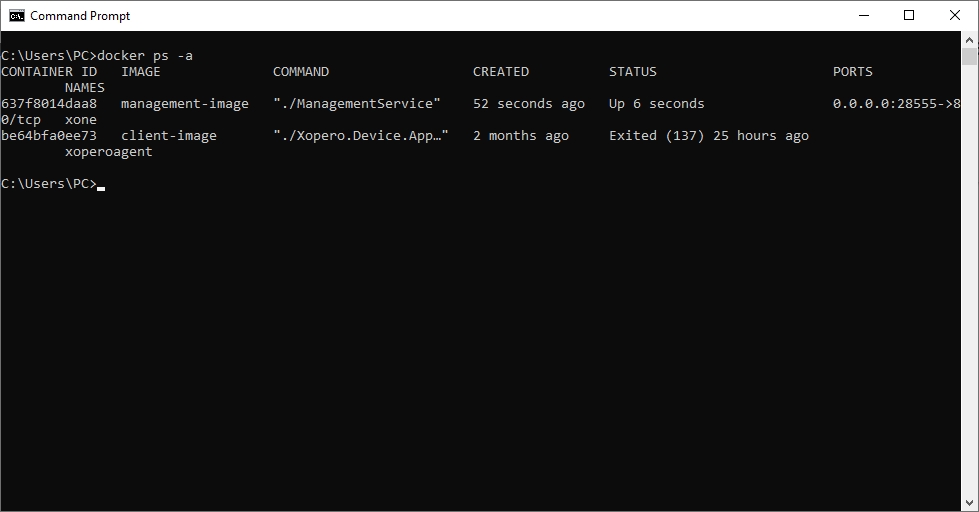

Next, use the following command to view the list of containers (or view the list in Docker Desktop):

docker ps -a

If you see no errors, that means the XMS implementation was done correctly. You can open the Xopero ONE Management Service web panel using the following address:

http://DockerHostAddress:28555

Before you start using XMS you must create an administrator account and assign a license to your unit.

Prerequisites Environment setup Deployment

Prerequisites

QNAP with:

x86 or x64 CPU (ARM is not supported)
minimum 2GB of RAM
Container Station app from the App Center

Environment setup

Login to your QNAP web panel and open the App Center application. Go to QNAP Store > All Apps and search for Container Station.

Download the Container Station application. Once downloaded, open the app and select the path you'll be using as your Docker container data directory.
Click Start Now to proceed.

Deployment

In the Container Station application, open the Containers menu option, and click the Create button.

In Image Configuration, choose Advanced mode. For Image type select Docker image, and in the Image field, paste the following:

xopero/xopero-one-service:latest

Ensure Try pulling the image from the registry before creating the container. checkbox is checked, then hit Next.

In the Configure Container tab, configure the Xopero ONE Docker container and hit Next to continue.

Name: set a custom name for the container
Auto start: defines if the container should startup automatically (i.e., in case of QNAP restart)
Publish network ports: enter a port number in the Host field— this will be the port used to connect to Xopero ONE service on the container on port 80 (the recommended host port number is 28555)

Double-check your configuration settings and hit Finish.

Container Station will download the latest Xopero ONE image and create the container based on it.

Once the container creation process is completed, your new container will be available in the Container Station application (under Containers menu option).

Connect to Xopero ONE using your web URL address in the following format (you can find it under Container Details > General > Web URL):

http://QNAPaddress:port

To finish the XMS setup, create a new administrative account, provide the license code, and select data to protect.

Prerequisites Environment setup Deployment

Prerequisites

QNAP with:

x86 or x64 CPU (ARM is not supported)
minimum 2GB of RAM
Container Station app from the App Center

Environment setup

Login to your QNAP web panel and open the App Center application. Go to QNAP Store > All Apps and search for Container Station.

Download the Container Station application. Once downloaded, open the app and select the path you'll be using as your Docker container data directory.
Click Start Now to proceed.

Deployment

Open the Container Station application and click ➕ Create in the left-hand side menu.
Copy and paste xopero/xopero-one-service in the search field and hit Enter to search for XMS Docker image (it should be the first search result in Docker Hub tab).
Click the Install button next to the Docker image to start the container creation process.

Select the latest image version and click Next to continue.

In the Create Container window, configure the Xopero ONE Docker container.

Name: set a custom name for the container
Auto start: defines if the container should startup automatically (i.e., in case of QNAP restart)
CPU Limit: allows you to set the CPU percentage usage available for the container
Memory Limit: RAM memory allocated to the container

Scroll down a little and click the ⚙️ Advanced Settings>>
In the ⚙️ Advanced Settings>> go to Network and click the Add button on the right. Enter a port number in the Host field under the Port Forwarding section— this will be the port used to connect to Xopero ONE service (the recommended, default port number is 28555).

Click the Create button— this will display the setup summary. Double-check your configuration and click OK to create the container.

Once the container creation process is completed, your new container will be available in the Container Station application (under Container menu option).

View on running container with Xopero ONE

Connect to Xopero ONE Management Service by launching it via Container Station, or using your web URL address in the following format:

http://QNAPaddress:port

To finish the XMS setup, create a new administrative account, provide the license code, and select data to protect.
