# SMTP server setup

{% hint style="warning" %}
SMTP server configuration settings are available <mark style="color:$danger;">**only for on-premise Xopero services**</mark>.
{% endhint %}

## Server configuration

{% stepper %}
{% step %}
Navigate to ⚙ **Settings** > **E-mail notifications** and click this tab to expand its settings.
{% endstep %}

{% step %}
Expand the **E-mail server** tab.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2F0cSv32IjSIhvmHoQmohJ%2Fimage.png?alt=media&#x26;token=d39f4abe-a514-4795-acb0-f991c1abdb48" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

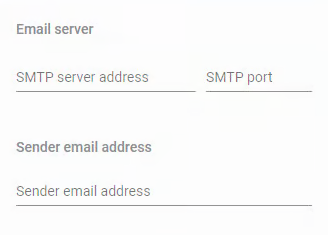

Specify the SMTP server configuration:

1. Enter the **SMTP server IP address** and **SMTP port**.
2. Enter the **sender's e-mail address**.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2FydVqrKOhpsxJLLy8EjO8%2Fimage.png?alt=media&#x26;token=2040c3aa-28f3-422b-96c8-eb4464154dee" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
If the server requires authentication:

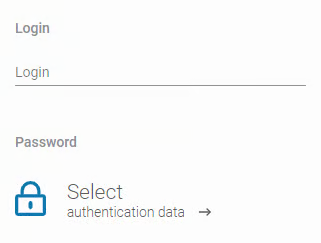

1. Check the **Server requires authentication** checkbox to display additional settings.
2. Enter the **login** and either select the **password** from the **Password Manager** or add a new one.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2FGsFdOXhjxXzCAgBs7lcY%2Fimage.png?alt=media&#x26;token=a8bd5a09-5c8b-4512-8152-590eed131c23" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}

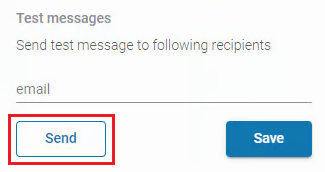

Optionally, send a **test message** to verify that the settings are correct.

<figure><img src="https://319733277-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0CBTl43C3OO6ySL1DJ6k%2Fuploads%2FSLaEXfzqQxf9G3c6FDyU%2Fimage.png?alt=media&#x26;token=9fa6aaef-e757-48a4-a1d1-d5b36e8aa2fe" alt=""><figcaption></figcaption></figure>
{% endstep %}

{% step %}
Review your settings and click **Save** to finish the setup.
{% endstep %}
{% endstepper %}
